foo_uie_webview ~ Foobar2000 Webapps


foo_uie_webview is a foobar2000 component that exposes the Microsoft WebView2 control as UI panel. The component started as foo_vis_text.

It takes an HTML file that receives playback notifications from foobar2000. The panel can react to those notifications and adjust its output using JavaScript code.

Features:

  • Supports the Default User Interface (DUI) and the Columns User Interface (CUI).
  • Supports dark mode.
  • Supports foobar2000 2.0 and later (32-bit and 64-bit version).

github.com/stuerp/foo_uie_webview
Topic: foo_uie_webview
Topic: Made with foo_uie_webview

Gallery

Foobar2000 ~ EAC Log Viewer Script


SMP EAC Log Viewer for Foobar2000

The SMP EAC Log Viewer is a Spider Monkey Panel (SMP) script for Foobar2000 designed to display Exact Audio Copy (EAC) log files in a DUI panel. It preserves the alignment of log columns, color-codes the conclusion lines for quick success/error identification, and prepends a summary line so it scrolls with the rest of the log.

Features:

  • DUI panel
  • Monospace font: Preserves column alignment in all EAC logs.
  • Color-coded conclusions:
    • Green = successful rip
    • Red = errors found
  • Summary line: Displays overall pass/fail and scrolls with the log.
  • Automatic log detection: Checks multiple common naming conventions:
    • %album%.log
    • %artist% - %album%.log
    • EAC.log

Installation:

  1. Download the script
    Get the latest version of the SMP script from the GitHub repository:
    github.com/tom2tec/foobar2000_smp_eac_log_viewer/releases
  2. Copy the script
    Copy and paste the eac_log_viewer_panel.js script into your preferred scripts folder. Typical choices:
    • C:\Users\<YourName>\Documents\Foobar\scripts
    • Or any folder you already use for SMP scripts.
  3. Add a Spider Monkey Panel
    • Open Foobar2000 and switch to your DUI layout.
    • Right-click → Add New UI Element → Spider Monkey Panel
    • Open the Edit Panel Script… pane and paste the contents of eac_log_viewer_panel.js. or point to the script’s location in Panel Properties → Script File → File.
  4. Adjust panel settings
    • Set the font to match your DUI theme (monospace).
    • Resize the panel to comfortably display the full log width.

Usage:

  • The panel automatically updates when:
    • You play a new track.
    • You change focus in the playlist.
  • Scroll through the log using your mouse wheel.
  • The summary line shows the overall rip status and scrolls with the text.
  • Color-coded lines highlight conclusions: green for success, red for errors.

Notes:

  • The script is optimized for one log per album, but will attempt all three naming conventions for flexibility.
  • Unusually named logs may require manual renaming in order to conform or add an input condition to the script.
  • DUI theming preserves font and panel appearance but maintains column alignment.

License

This project is licensed under the MIT License. See the included LICENSE file or the GitHub repository for details.

Download and Support

Foobar2000 ~ Album Based Beats Per Minute


Beats Per minute is great for playlist of songs sorted by BPM but it would be useful to sort albums by BPM as well. To do this the following script calculates an average of BPM information from each song of the album and write that value to ALBUM_AVG_BPM. Then just create a playlist sorted by artist then album_avg_bpm

SMP Album Average BPM Calculator Script

In the DUI, toggle layout and create a new panel or tab, then right click the new area and add a New UI Element, scroll down to the Utility section and select Spider Monkey Panel and click OK. Now right click the new Spider Monkey Panel and select Edit Panel Script. Select the entire contents on the new ‘Temporary File’ window and replace them with the following script.

Show full script

'use strict';

/*
====================================================
Album Average BPM Panel - FULL PRO v5
- Immediate feedback for buttons
- Status line in report section
- Progress bars appear immediately
- Logs skipped files
- Inconsistent albums listed
====================================================
*/

function RGB(r,g,b){ return (0xff000000 | (r<<16) | (g<<8) | b); }

////////////////////////////////////////////////////
// TitleFormats
////////////////////////////////////////////////////
const tf_album = fb.TitleFormat("%album%");
const tf_albumArtist = fb.TitleFormat("%album artist%");
const tf_artist = fb.TitleFormat("%artist%");
const tf_bpm = fb.TitleFormat("%bpm%");
const tf_existing = fb.TitleFormat("%album_avg_bpm%");

////////////////////////////////////////////////////
// UI Colours + Font
////////////////////////////////////////////////////
function getUIColours(){
    try{
        return { bg: window.GetColourDUI(1), text: window.GetColourDUI(0), accent: window.GetColourDUI(2) };
    }catch(e){
        return { bg: RGB(30,30,30), text: RGB(255,255,255), accent: RGB(0,200,0) };
    }
}

function getUIFont(){ try{ return window.GetFontDUI(0); } catch(e){ return gdi.Font("Segoe UI",13,0); } }

////////////////////////////////////////////////////
// Library cache
////////////////////////////////////////////////////
let libHandles = null;
function loadLibraryOnce(){ if(!libHandles) libHandles = fb.GetLibraryItems(); }

////////////////////////////////////////////////////
// State
////////////////////////////////////////////////////
let runningUpdate=false;
let reporting=false;
let updateIndex=0, updateTimer=0;
let reportIndex=0, reportTimer=0;
let currentAlbum="Idle", currentFile="";
let updates=0;

let totalFiles=0, totalAlbums={};
let missingBPM=0, zeroBPM=0, missingAlbumAvg=0;
let minBPM=999999, maxBPM=0;
let albumConsistency={}, inconsistentAlbums=0;
let skippedFiles=[];

let forceRecalc=false, useMedian=false;

////////////////////////////////////////////////////
// Layout
////////////////////////////////////////////////////
const LEFT_WIDTH = 280;
const buttonScan={x:20,y:50,w:220,h:50};
const buttonUpdate={x:20,y:110,w:220,h:50};
const buttonCopy={x:20,y:170,w:220,h:50};
const checkboxForce={x:20,y:240,size:20};
const checkboxMedian={x:20,y:270,size:20};

////////////////////////////////////////////////////
// Album BPM Update Logic
////////////////////////////////////////////////////
let albumsMap=[];

function buildAlbums(){
    loadLibraryOnce();
    albumsMap = [];
    let map={};

    for(let i=0;i400) continue; // Filter extreme BPMs

        let groupingArtist = albumArtist ? albumArtist : artist;
        let key = groupingArtist+"|||"+album;

        if(!map[key]){
            map[key]={ handles:new FbMetadbHandleList(), sum:0, count:0, hasExisting:true, existingValues:{} };
        }

        map[key].handles.Add(h);
        map[key].sum += bpm;
        map[key].count++;

        let albumAvg = tf_existing.EvalWithMetadb(h);
        if(albumAvg) map[key].existingValues[albumAvg]=true;

        if(!albumAvg) map[key].hasExisting=false;
    }

    albumsMap = Object.values(map);
}

function stopUpdateTimer(){ if(updateTimer){ window.ClearInterval(updateTimer); updateTimer=0; } }

function processUpdateNext(){
    if(!runningUpdate) return;

    if(updateIndex>=albumsMap.length){
        runningUpdate=false;
        stopUpdateTimer();
        currentAlbum="Finished";
        fb.ShowPopupMessage("Album BPM Update Finished. Updated Albums: "+updates);
        window.Repaint();
        return;
    }

    let data = albumsMap[updateIndex++];
    currentAlbum = tf_album.EvalWithMetadb(data.handles[0]);

    // Determine if update needed
    let inconsistent = Object.keys(data.existingValues).length > 1;
    if(!forceRecalc && !inconsistent) return;

    let avg=0;
    if(useMedian){
        let arr=[];
        for(let i=0;i<data.handles.Count;i++){
            let val=parseFloat(tf_bpm.EvalWithMetadb(data.handles[i]));
            if(!isNaN(val) && vala-b);
        let mid=Math.floor(arr.length/2);
        avg = arr.length%2===0 ? (arr[mid-1]+arr[mid])/2 : arr[mid];
    }else{
        avg = data.sum / data.count;
    }
    avg = avg.toFixed(2);

    let json=[];
    for(let i=0;i<data.handles.Count;i++){
        try{
            json.push({"ALBUM_AVG_BPM":avg});
        }catch(e){
            skippedFiles.push(data.handles[i].Path);
        }
    }

    try{
        data.handles.UpdateFileInfoFromJSON(JSON.stringify(json));
        updates++;
    }catch(e){
        for(let i=0;i0){
        currentAlbum = tf_album.EvalWithMetadb(albumsMap[0].handles[0]);
    }

    window.Repaint();
    updateTimer = window.SetInterval(processUpdateNext,100);
}

////////////////////////////////////////////////////
// Report Logic
////////////////////////////////////////////////////
let reportText="Press Scan Library.";

function stopReportTimer(){ if(reportTimer){ window.ClearInterval(reportTimer); reportTimer=0; } }

function processReportNext(){
    if(!reporting) return;
    let batch=500;

    for(let c=0;c<batch && reportIndex0){
                if(bpmmaxBPM) maxBPM=bpm;
            }
        }
        if(!albumAvg) missingAlbumAvg++;

        if(!albumConsistency[key]) albumConsistency[key]={};
        if(albumAvg) albumConsistency[key][albumAvg]=true;

        currentFile = groupingArtist+" - "+album;
    }

    if(reportIndex>=libHandles.Count){
        reporting=false;
        stopReportTimer();

        inconsistentAlbums=0;
        let inconsistentList=[];
        for(let k in albumConsistency){
            let vals=Object.keys(albumConsistency[k]);
            if(vals.length>1){
                inconsistentAlbums++;
                if(inconsistentList.length0?inconsistentList.join("\n"):"None"}

Skipped / Inaccessible Files:
${skippedFiles.length>0?skippedFiles.join("\n"):"None"}

Current Status: Idle

BPM Range:
- Lowest BPM found: ${minBPM===999999?"N/A":minBPM}
- Highest BPM found: ${maxBPM}`;
    }

    window.Repaint();
}

function startReport(){
    if(reporting) return;
    loadLibraryOnce();
    reportIndex=0;
    totalFiles=0; totalAlbums={};
    missingBPM=0; zeroBPM=0; missingAlbumAvg=0;
    minBPM=999999; maxBPM=0; albumConsistency={};
    skippedFiles=[];

    reporting=true;
    reportText="Scanning library...";

    // show first file immediately
    if(libHandles.Count>0){
        currentFile = tf_album.EvalWithMetadb(libHandles[0]) || "(No Album)";
    }

    window.Repaint();
    reportTimer = window.SetInterval(processReportNext,10);
}

////////////////////////////////////////////////////
// Drawing
////////////////////////////////////////////////////
function drawButton(gr,b,label,ui,font){
    gr.FillSolidRect(b.x,b.y,b.w,b.h,ui.accent);
    gr.DrawString(label,gdi.Font(font.Name,14,1),ui.text,b.x,b.y,b.w,b.h,0x11000000);
}

function drawCheckbox(gr,c,label,state,ui,font){
    gr.DrawRect(c.x,c.y,c.size,c.size,1,ui.text);
    if(state) gr.FillSolidRect(c.x+4,c.y+4,c.size-8,c.size-8,ui.accent);
    gr.DrawString(label,font,ui.text,c.x+28,c.y-2,300,24,0);
}

function on_paint(gr){
    let ui=getUIColours();
    let font=getUIFont();
    let titleFont=gdi.Font(font.Name,16,1);

    gr.FillSolidRect(0,0,window.Width,window.Height,ui.bg);

    // LEFT PANEL
    gr.DrawString("Album Avg BPM Tools",titleFont,ui.text,20,10,LEFT_WIDTH,30,0);
    drawButton(gr,buttonScan,"Scan Library",ui,font);
    drawButton(gr,buttonUpdate,"Run Album BPM Update",ui,font);
    drawButton(gr,buttonCopy,"Copy Report",ui,font);
    drawCheckbox(gr,checkboxForce,"Force Recalculate",forceRecalc,ui,font);
    drawCheckbox(gr,checkboxMedian,"Use Median Averaging",useMedian,ui,font);

    gr.DrawLine(LEFT_WIDTH,0,LEFT_WIDTH,window.Height,1,ui.text);

    // RIGHT PANEL - report text
    let statusText = reporting ? "Scanning: "+currentFile : runningUpdate ? "Updating Album BPM: "+currentAlbum : "Idle";
    let reportWithStatus = reportText.replace("Current Status: Idle","Current Status: "+statusText);

    gr.GdiDrawText(reportWithStatus,font,ui.text,
        LEFT_WIDTH+20,20,
        window.Width-(LEFT_WIDTH+40),
        window.Height-160,0); // leave 160px for progress bars

    // Progress bars
    const barHeight = 18;
    const margin = 8;
    const barYUpdate = window.Height - 2*barHeight - 2*margin;
    const barYScan   = window.Height - barHeight - margin;

    if(runningUpdate){
        let prog=Math.floor((updateIndex/albumsMap.length)*(window.Width-LEFT_WIDTH-40));
        gr.FillSolidRect(LEFT_WIDTH+20,barYUpdate,prog,barHeight,ui.accent);
        gr.DrawRect(LEFT_WIDTH+20,barYUpdate,window.Width-LEFT_WIDTH-40,barHeight,1,ui.text);
        gr.DrawString("Updating Album BPM: "+currentAlbum,font,ui.text,LEFT_WIDTH+20,barYUpdate-25,window.Width-LEFT_WIDTH-40,20,0);
    }

    if(reporting){
        let prog=Math.floor((reportIndex/libHandles.Count)*(window.Width-LEFT_WIDTH-40));
        gr.FillSolidRect(LEFT_WIDTH+20,barYScan,prog,barHeight,ui.accent);
        gr.DrawRect(LEFT_WIDTH+20,barYScan,window.Width-LEFT_WIDTH-40,barHeight,1,ui.text);
        gr.DrawString("Scanning: "+currentFile,font,ui.text,LEFT_WIDTH+20,barYScan-25,window.Width-LEFT_WIDTH-40,20,0);
    }
}

////////////////////////////////////////////////////
// Mouse
////////////////////////////////////////////////////
function on_mouse_lbtn_up(x,y){
    if(hit(buttonScan,x,y)) {
        startReport();
        reportText = "Scanning library...";
        currentFile = libHandles.Count>0 ? tf_album.EvalWithMetadb(libHandles[0]) || "(No Album)" : "Idle";
        window.Repaint();
    }
    if(hit(buttonUpdate,x,y)) {
        startUpdate();
        currentAlbum = albumsMap.length>0 ? tf_album.EvalWithMetadb(albumsMap[0].handles[0]) : "Preparing update...";
        window.Repaint();
    }
    if(hit(buttonCopy,x,y) && reportText){
        utils.SetClipboardText(reportText);
        fb.ShowPopupMessage("Report copied to clipboard.");
    }

    if(hitSquare(checkboxForce,x,y)){ forceRecalc=!forceRecalc; window.Repaint(); }
    if(hitSquare(checkboxMedian,x,y)){ useMedian=!useMedian; window.Repaint(); }
}

function hit(b,x,y){ return x>=b.x && x=b.y && y=c.x && x=c.y && y<=c.y+c.size; }

Album Avg BPM Tools Script

github.com/tom2tec/foobar2000-smp-album-average-bpm

Resources:

https://github.com/stengerh/foo_bpm
https://github.com/NotSimone/foo_cnn_bpm
https://github.com/tom2tec/foobar2000-smp-album-average-bpm

Discord Audio Stream ~ Stream Audio Via Discord


Designed for 24/7 audio playing on discord.

Discord has many unwanted rate limits, especially in the audio area. This package does all the work and ensures that your music never stops playing due to ffmpeg or Discord, with as little effort as possible.

github.com/FrauJulian/Discord-Audio-Stream
www.npmjs.com/package/discord-audio-stream

audioMotion ~ Player & Realtime Spectrum Analyzer


audioMotion is a media player and high-resolution real-time audio spectrum analyzer that allows you to SEE your music! ♪♫🤩

It is completely free, open-source software, created out of my passion for the graphic spectrum analyzers of hi-fi systems from the 1980s.

Features:

Dual channel high-resolution real-time audio spectrum analyzer

  • Media player with subtitles support for audio and video files
  • Fullscreen and Picture-In-Picture display at 60fps, ready for Retina / HiDPI screens
  • Logarithmic, linear and perceptual (Bark and Mel) frequency scales, with customizable range
  • Visualization of discrete FFT frequencies or up to 240 frequency bands (supports ANSI and equal-tempered octave bands)
  • Decibel and linear amplitude scales, with customizable sensitivity
  • Optional A, B, C, D and ITU-R 468 weighting filters
  • Optional effects: vintage LEDs, variable opacity, mirroring and reflection, radial spectrum
  • 17 beautiful color gradients, plus a visual editor to easily create your own gradients
  • Support for M3U playlists (.m3u and .m3u8 file extensions)
  • Visualize audio from your microphone (or “stereo mix”, if your soundcard supports it)

audiomotion.app
github.com/hvianna/audioMotion.js

Resources:

en.wikipedia.org/wiki/Spectrum_analyzer

Binary Synth ~ Audio Synthesis From Binary


A web-synthesizer that generates sound from the binary code of any files. It can synthesize sound directly in the browser, or be a generator of MIDI messages to external devices or DAWs, turning any file into a score. All the application code is written in Javascript and along with everything you need is packed into a single .html file of about 750kb. The synthesizer doesn’t need internet, it can be downloaded and run locally on any device with a browser.

The application reads the file sequentially, and due to the high speed of reading and random deviation of reading duration, we can get quite unpredictable generation of timbre nuances, and at certain settings we can switch to granular synthesis.

github.com/MaxAlyokhin/binary-synth
bs.stranno.su

foo_jscript_panel3 ~ JScript Panel 3


This component for foobar2000 is based on WSH Panel Mod.

It allows the creation of customisable panels that can be written with JavaScript rather than the C++ required by the foobar2000 SDK.

Under the hood, it uses Windows Script Host. Because of this, JS language support is limited to ECMAScript 5. Nothing newer will ever be supported.

Here are just some of the features provided by the component…

  • Custom drawing of text, external images, lines, rectangles, etc.
  • Use fonts/colours from the main preferences of whichever user interface you are using.
  • Executing main/context menu commands.
  • Ability to create custom buttons/menus.
  • Capture keystrokes/mouse movement/clicks.
  • Callbacks can be used to trigger code based on foobar2000 events.
  • Read/write file tags.
  • Complete manipulation of playlists.
  • Media Library display/sorting/filtering
  • Save settings on a per panel basis. These persist between restarts and are stored inside the layout configuration file for whichever UI your are using. You can also write your own functions to load/save settings from JSON or plain text files.
  • Built in support for making GET / POST requests which return plain text and there is also a method for downloading binary files. If you prefer, you can use the Microsoft.XMLHTTP ActiveX object.
  • There are many built in methods for working with the local filesystem, launching external applications etc. Previous versions / other scripting components rely on ActiveX objects but the need for those is greatly reduced.
  • And much more…

github.com/jscript-panel
jscript-panel.github.io

foo_jscript_panel by leefan


This was a customisable panel for the foobar2000 audio player. It was based on WSH Panel Mod and was its successor. It is no longer maintained and has been superseded.

All scripts were written in Javascript but the component provided means to do the following:

  • Custom drawing of text, images, lines, rectangles, etc.
  • Executing main/context menu commands.
  • Ability to create custom buttons/menus.
  • Callbacks can be used to trigger code based on foobar2000 events . See callbacks.txt.
  • Read/write file tags.
  • Complete manipulation of playlists.
  • Media Library display/sorting/filtering
  • And much more…
github.com/leefan/foo-jscript-panel

AudioMass ~ Opensource Web Audio Editor


AudioMass lets you record, or use your existing audio tracks, and modify them by trimming, cutting, pasting or applying a plethora of effects, from compression and paragraphic equalizers to reverb, delay and distortion effects. AudioMass also supports more than 20 hotkeys combinations and a dynamic responsive interface to ensure ease of use and that your productivity remains high. it is written solely in plain old-school javascript, weights approximately 65kb and has no backend or framework dependencies.

  • Loading Audio, navigating the waveform, zoom and pan
  • Visualization of frequency levels
  • Peak and distortion signaling
  • Cutting/Pasting/Trimming parts of the audio
  • Inverting and Reversing Audio
  • Exporting to mp3
  • Modifying volume levels
  • Fade In/Out
  • Compressor
  • Normalization
  • Reverb
  • Delay
  • Distortion
  • Pitch Shift
  • Keeps track of states so you can undo mistakes
  • Offline support!

audiomass.co

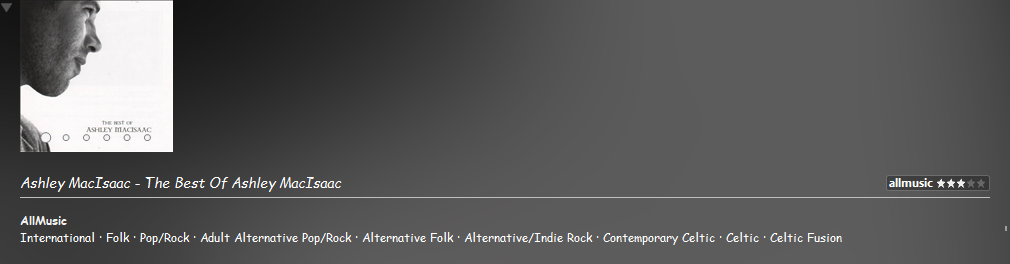

Foobar2000 ~ Biography Display Script


This is an updated biography script that works in the 32bit Spider Monkey Javascript panel. This won’t work in 64bit Foobar2000 installations.

biography_new_1

Spider Monkey Panel ~ github.com/TheQwertiest/foo_spider_monkey_panel

Biography Script: The most recent version of the script is on, or near, the last page of this discussion. ~ hydrogenaud.io/index.php/topic,112913.0.html

  1. Download and install foo_spider_monkey_panel
  2. Download and unzip the newest version of the Biography script
  3. In Foobar2000 select “View > Layout > Enable Layout Editing Mode
  4. Add a new panel or tab to your Foobar interface
  5. Right click in the new area and select “Add New UI Element…
  6. Select “Spider Monkey Panel” in the Utility section
  7. You should now see a blank Spider Monkey panel and the message “Click here to open editor.
  8. Click on the panel to open the editor and click the “Files” button and select “Import” and navigate to the biography script folder, select the script file “biography.x.x.x.js” and click “Open
  9. Click “Apply” and click “Ok
  10. Rename the Tab
  11. Disable “Layout editing mode” in the “View” menu

Forum Discussion:
hydrogenaud.io/index.php/topic,112914.msg929674

foo_spider_monkey_panel


This is a component for the foobar2000 audio player. It allows using JavaScript to create full-fledged CUI/DUI panels!

Base functionality includes:

  • Graphics functions: drawing (text, images, lines, rectangles and etc), image modification (resize, blur, inversion of colours and etc).
  • Access to font and colour settings from CUI/DUI preferences.
  • Capture of foobar2000 events with callbacks.
  • Capture of keystrokes and mouse movement/clicks.
  • Execution of main menu and context menu commands.
  • Creation of custom buttons and menus.
  • Playlist management: create, destroy, sort, change, rename and do anything that fb2k can do.
  • Media Library access with ability to sort and filter it’s content.
  • File tag management.
  • Per panel settings storage.
  • Built-in web and filesystem functionality.
  • foo_acfu integration.
  • And more!

github.com/TheQwertiest/foo_spider_monkey_panel
github.com/TheQwertiest/foo_spider_monkey_panel/wiki
github.com/TheQwertiest/foo_spider_monkey_panel/wiki/Installation
github.com/TheQwertiest/foo_spider_monkey_panel/releases/latest
HA Topic ~ hydrogenaud.io/index.php?topic=116669.0

MusicLibraryPlayer ~ Server Side Player


Music Library & Player utilizes PHP and vanilla javascript to deliver your web-accessible music library via HTML5 audio in a fully responsive and modern interface.

The library does not require a database back-end. It parses the directory structure, best suited for a [ROOT]/[ARTIST]/[ALBUM]/[TRACKS] type of layout. This isn’t required, but makes for the best user experience. Random playlists can also be generated.

The code contained in this script has not been minified. It is written in long form and is well-documented for ease of use and customization.

Individual tracks are optionally presented with download links. Minimal effort has been put into limiting the reach of the player and download links. It is limited, by default, to the three audio file types that are supported by HTML5. It is advised that you password protect the Music Library & Player directory using htaccess or other method to restrict public access.

Features:
  • Responsive web music library and player
  • HTML5 or m3u file
  • Perfect for a NAS or personal website
  • Easy to setup with little to no programming
  • Uses PHP, vanilla javascript, and html5media
  • No database back-end. Directories are parsed into Artist/Album/Track playlists
  • Open Source MIT License

sourceforge.net/projects/musiclibraryplayer/
