An application for testing the audio channels of home theater systems and calibrating the gain of each speaker.
github.com/goha500503/White-Noise-Channel-Tester-Calibration
Python Script ~ White Noise Channel Tester
Tag Archives: convolution

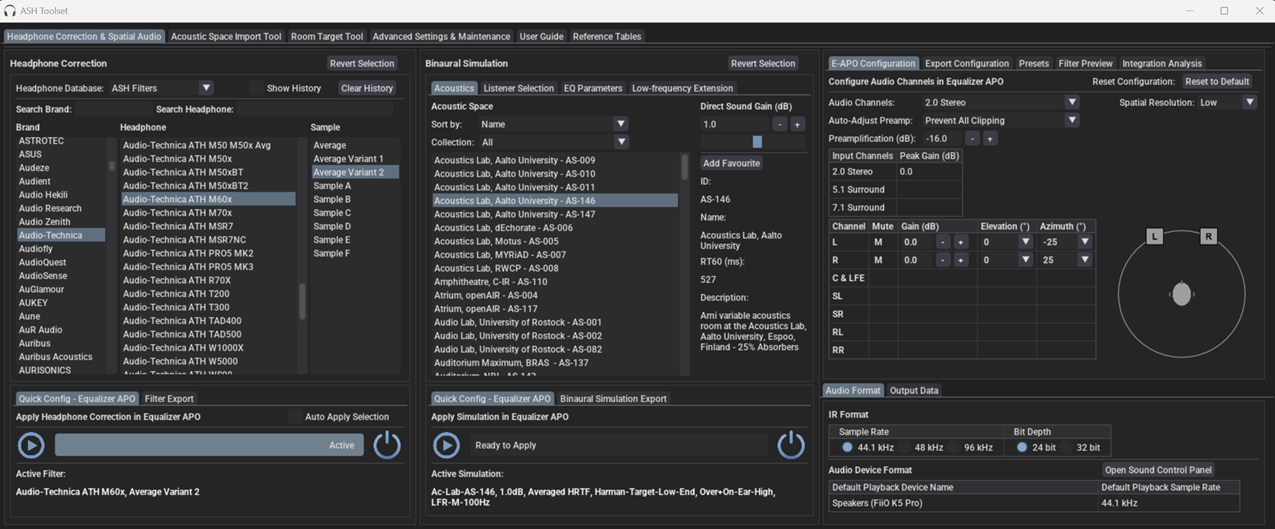

ASH Toolset ~ Headphone Correction & Binaural Synthesis
The Audio Spatialisation for Headphones Toolset is a set of tools for headphone correction and binaural synthesis of spatial audio systems on headphones.
Features:
- Headphone Correction — Generate headphone correction filters in WAV format for IR convolution or as configurations for graphic equalisers.
- Binaural Room Simulation — Generate customised binaural simulations of different acoustic environments including control rooms, studios, halls, and more. Resulting filters can be saved in WAV format or SOFA format for IR convolution.
- Equalizer APO Integration — Auto configures Equalizer APO to apply created filters and perform headphone correction and binaural room simulation.
- HeSuVi Compatibility — Generates filters in formats compatible with HeSuVi, a headphone surround virtualization tool for Equalizer APO.
- SOFA Format Compatibility – Load HRTF datasets and export customised binaural responses in SOFA format
github.com/ShanonPearce/ASH-Toolset
sourceforge.net/projects/ash-toolset
Share this:
Voxengo Boogex
Applications
- Real-time guitar processing
- Speaker cabinet simulation
- Stereo convolution processing
- Guitar reverb effect
Boogex is a free guitar amplifier AudioUnit, AAX, and VST plugin with a variety of sound shaping features, for professional sound and music production applications. With Boogex it is possible to get a heavy distorted sound as well as slight “jazzy” saturation sound. Boogex is able to apply convolution with any speaker cabinet impulse response (selection of built-in impulses is available). The processing latency is close to zero making it possible to use Boogex for real-time guitar processing.
Boogex can be used as a plain stereo convolution processor when its “Amp” stage is turned off. The convolver module has zero latency and is not CPU-demanding. Boogex also includes the input gate module, and reverberation module derived from Voxengo OldSkoolVerb reverb plugin.
Boogex produces a nice “minimalist” rock music-geared sound which may be a bit noisy at higher overdrive settings; higher frequencies can be easily suppressed with its built-in Emphasis EQ. With the amp modes Boogex currently provides, it is not particularly well-suited for metal music, but can still be used as a cabinet impulse response processor for metal music.
www.voxengo.com/product/boogex
Share this:
BruteFIR ~ Unix Multi-Channel Convolution
BruteFIR is a software convolution engine, a program for applying long FIR filters to multi-channel digital audio, either offline or in real-time. Its basic operation is specified through a configuration file, and filters, attenuation and delay can be changed in runtime through a simple command line interface. The FIR filter algorithm used is an optimized frequency domain algorithm, partly implemented in hand-coded assembler, thus throughput is extremely high. In real-time, a standard computer can typically run more than 10 channels with more than 60000 filter taps each.
Through its highly modular design, things like adaptive filtering, signal generators and sample I/O are easily added, extended and modified, without the need to alter the program itself.
torger.se/anders/brutefir
Share this:

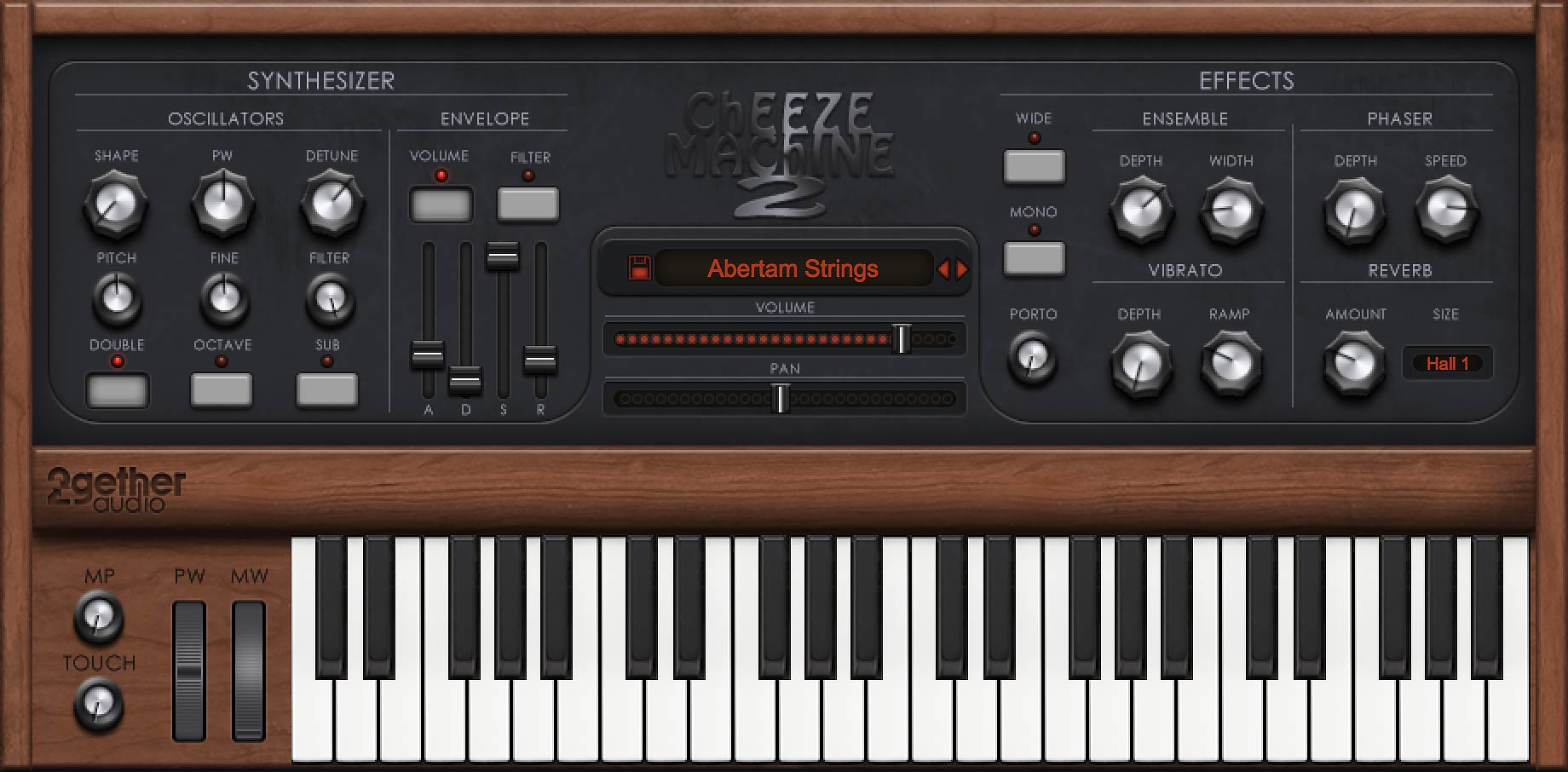

Cheeze Machine 2 ~ Virtual String Instrument
Back by popular demand comes a remastered version of the extremely popular Cheeze Machine virtual instrument by Big Tick Audio. An extra cheesy, extra saucy string box in the style of the original vintage string machines. Cheeze Machine 2 includes an expanded oscillator section, convolution reverb, a vintage ensemble chorus, and 64 bit compatibility for VST, AU, AAX and standalone applications.
www.2getheraudio.com/instruments/cheeze-machine-2
Share this:
HeSuVi ~ Headphone Surround Virtualizations
This tool imitates the 7.1 to binaural sound effect of many surround virtualizations by making use of Equalizer APO’s convolution filter. Available impulse response that were recorded with activated…
- Dolby Atmos Headphone
- CMSS-3D
- SBX Pro Studio Surround (also found in BlasterX Acoustic Engine & THX TruStudio Pro)
- Dolby Headphone
- Sennheiser GSX Binaural 7.1
- DTS Headphone:X
- Windows Sonic Headphone
- Dolby Home Theater v4 Headphone Surround Virtualizer
- Razer Surround
- Out Of Your Head
- Flux HEar V3
- OpenAL and DirectSound3D HRTFs
- Waves Nx
- and many more!
Features:
- many different headphone surround impulse responses
- powerful graphic equalizer
- equalizer presets for over 1000 popular headphones
- use multiple devices on one sound card
- extensive control over different volume levels
- apply and save the processing onto your audio files
- fully configurable crossfeed
- quickly save & load profiles, even through hotkeys
- supports command line parameters for all options
- rearrange the virtual speakers’ positions
- intelligent stereo upmix
- portable installation with easy one-click updater
sourceforge.net/projects/hesuvi
sourceforge.net/p/hesuvi/wiki/Help
HeSuVi Conversion Tool
This fairly simple tool converts all HeSuVi 14 channel presets into 7.0 formatted _L/_R stereo pairs, for use with the soon to be updated PulseAudio module-virtual-surround-sink, which I’ve updated with a faster FFT overlap-save convolver, eliminated the sample length limits for impulses, and added support for asymmetrical/dual impulse mode.
Share this:
rePhase ~ Loudspeaker Phase Linearization
rePhase is a FIR generation tool for building fully linear-phase active crossovers with arbitrary slopes.
It also let you manually compensate for the phase shifts of your loudspeakers and existing crossovers, be it active or passive.
Once generated, the FIR can be applied using any hardware (openDRC, miniSHARC, Najda, …) or software (foobar, convolver, JRiver, …), stereo or multi-way convolution engine.
sourceforge.net/projects/rephase
Additional resources:
Equalizer APO, REW and Rephase WOW! ~ diyAudio
en.wikipedia.org/wiki/Digital_room_correction
Share this:
Convolver ~ A Convolution Plugin
Convolver is an open source, high performance Windows application for applying finite impulse response (FIR) filters to multi-channel digital audio in the form of
- a real time DSP audio plug-in (DMO) for Windows Media Player. The install package also contains
- two DirectX / DirectShow filter versions — ConvolverWrapper or the equivalent ConvolverFilter — for Adobe Audition and real time applications such as Zoom Player Pro, TheaterTek 2.2, Windows Media Player Classic, J.River Media Center (when used with the DirectX host plug-in), or Console. See the setup walkthrough for ZoomPlayer after reading this page for further details. In many cases the DMO will also work.
- a VST plug-in version (convolverVST). Finally, there are a number of
- command line applications for testing performance, and convolving files offline, for example. convolverPipe can filter SlimServer playback.
Convolver will take a set of FIR filter files (sound files) and convolve them with sound paths mixed from the input channels, mixing the results into a set of specified output channels.
convolver.sourceforge.net
Download
Documentation
Share this:
DRC ~ Digital Room Correction Filter Generator
DRC is a program used to generate correction filters for acoustic compensation of HiFi and audio systems in general, including listening room compensation. DRC generates just the FIR correction filters, which can be used with a real time or offline convolver to provide real time or offline correction. DRC doesn’t provide convolution features, and provides only some simplified, although really accurate, measuring tools.
drc-fir.sourceforge.net
sourceforge.net/projects/drc-fir/files/
Documentation
Wikipedia
