Foobar2000 Audio Player

foo_vis_shpeck ~ Foobar MilkDrop Visualizations

Posted by tom2tec on

The foo_vis_shpeck component runs Winamp visualization plugins in a stand-alone window, a Columns UI panel or Default UI element.

Documentation
Download
Hydrogen Audio Topic
Download Winamp

Shpeck enables Foobar2000 to display dynamic graphics that react to the beat. It’s possible to toggle between fullscreen and windowed modes.

Install the foo_vis_shpeck plugin, combined with Winamp’s MilkDrop visualizations.

  1. Download foo_vis_shpeck
  2. Download visualizations
  3. Install plugin
  4. Install visualizations
  5. Create foobar DUI window

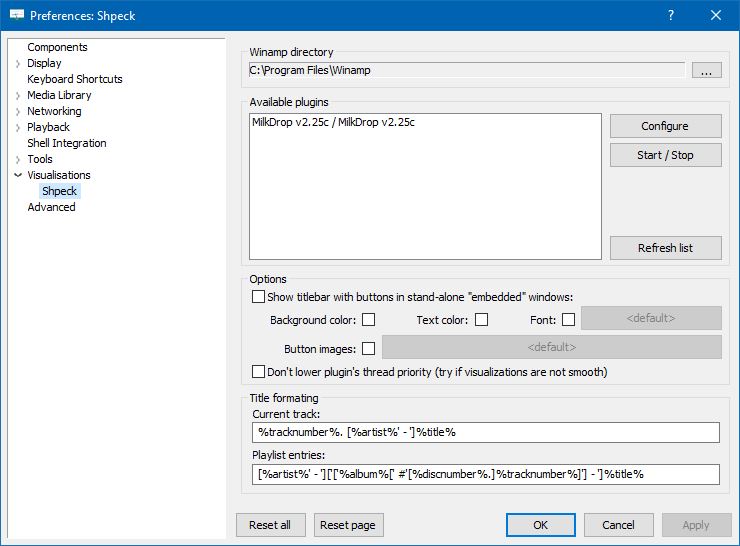

  6. Configure plugin
  7. Configure visualizations

Resources:
www.foobar2000.org/components/view/foo_vis_shpeck

Guides:
Milkdrop in Foobar on Windows 8 ~ vault-tec.info/post/51743506694/milkdrop-in-foobar2000-on-windows-8

Additional Presets:
sourceforge.net/projects/mdpresetpack/
www.thefreewindows.com/21777/download-free-milkdrop2-50000-presets-megapack/

… some archives from this milkdrop contest thread on winamp forum and put everything into a single archive. Some of the presets are nice and quite original, but most of them are variations. The ones that seemed nice to me I copied and added exclamation mark to their names. ~ hydrogenaud.io/index.php/topic,59388.msg914054.html#msg914054

foo_deskband_control ~ Foobar2000 On The Taskbar

Posted by tom2tec on

Customizable windows – taskbar deskband control

www.foobar2000.org/components/view/foo_deskband_controls
hydrogenaud.io/index.php?topic=78234.0

foo_input_vgmstream ~ Foobar2000 Plays Game Audio

Posted by tom2tec on

This Foobar2000 component decodes dozens of streamed ADPCM or other compressed format files extracted from various console and PC games.

www.foobar2000.org/components/view/foo_input_vgmstream

Supported codec types:

Quick list of codecs vgmstream supports, including many obscure ones that are used in few games.

PCM 16-bit
PCM 8-bit (signed/unsigned)
PCM 4-bit (signed/unsigned)
PCM 32-bit float
u-Law/a-LAW
CRI ADX (standard, fixed, exponential, encrypted)
Nintendo DSP ADPCM a.k.a GC ADPCM
Nintendo DTK ADPCM
Nintendo AFC ADPCM
ITU-T G.721
CD-ROM XA ADPCM
Sony PSX ADPCM a.k.a VAG (standard, badflags, configurable, Pivotal)
Sony HEVAG
Electronic Arts EA-XA (stereo, mono, Maxis)
Electronic Arts EA-XAS (v0, v1)
DVI/IMA ADPCM (stereo/mono + high/low nibble, 3DS, Omikron, SNDS, etc)
Microsoft MS IMA ADPCM (standard, Xbox, NDS, Radical, Wwise, FSB, WV6, etc)
Microsoft MS ADPCM (standard, Cricket Audio)
Westwood VBR ADPCM
Yamaha ADPCM (AICA, Aska)
Procyon Studio ADPCM
Level-5 0x555 ADPCM
lsf ADPCM
Konami MTAF ADPCM
Konami MTA2 ADPCM
Paradigm MC3 ADPCM
FMOD FADPCM 4-bit ADPCM
Konami XMD 4-bit ADPCM
Platinum 4-bit ADPCM
Argonaut ASF 4-bit ADPCM
Ocean DSA 4-bit ADPCM
Circus XPCM ADPCM
OKI 4-bit ADPCM (16-bit output, 4-shift, PC-FX)
Ubisoft 4/6-bit ADPCM
SDX2 2:1 Squareroot-Delta-Exact compression DPCM
CBD2 2:1 Cuberoot-Delta-Exact compression DPCM
Activision EXAKT SASSC DPCM
Xilam DERF DPCM
InterPlay ACM
VisualArt’s NWA
Electronic Arts MicroTalk a.k.a. UTK or UMT
CRI HCA
Xiph Vorbis (Ogg, FSB5, Wwise, OGL, Silicon Knights)
MPEG MP1/2/3 (standard, AHX, XVAG, FSB, AWC, P3D, etc)
ITU-T G.722.1 annex C (Polycom Siren 14)
ITU G.719 annex B (Polycom Siren 22)
Electronic Arts EALayer3
Electronic Arts EA-XMA
Sony ATRAC3, ATRAC3plus
Sony ATRAC9
Microsoft XMA1/2
Microsoft WMA v1, WMA v2, WMAPro
AAC
Bink
AC3/SPDIF
Xiph Opus (Ogg, Switch, EA, UE4, Exient)
Xiph CELT (FSB)
Musepack
FLAC
Others

github.com/losnoco/vgmstream

foo_input_sacd ~ Foobar2000 Super Audio CD Decoder

Posted by tom2tec on

Super Audio CD Decoder input plugin for foobar2000. Decoder is capable of playing back Super Audio CD ISO images, DSDIFF, DSF and DSD WavPack files. Direct DSD playback for compatible devices.

Separate DSD Processor/DSD Converter plugins for track extraction into DSD/DST encoded files.

sourceforge.net/projects/sacddecoder
Foobar2000:Components/Super_Audio_CD_Decoder_(foo_input_sacd)
Sony: How to install a Super Audio CD Decoder component

foo_tfsandbox ~ Foobar2000 Title Formatting

Posted by tom2tec on

This component provides an editor for title formatting code [mainly targeted at title formatting beginners]. The editor includes syntax highlighting, a preview of the selected fragment of the code and a view of the code structure. The idea behind the component is to allow users to explore title formatting scripts by exposing aspects which are normally hidden on the user interface of foobar2000 and its components.

www.foobar2000.org/components/view/foo_tfsandbox
github.com/stengerh/foo_tfsandbox
Hydrogenaudio Topic

Foobar2000 ~ Encoder & Input List

Posted by tom2tec on

Additional encoding/decoding and input components expand the range of audio file formats that can be played by Foobar2000. Not all of these components are official or officially recommended. Listed alphabetically by component name.

  • foo_ac3 ~ Decodes ATSC A-52 bitstream files (.AC3). Also includes a packet decoder for Matroska files containing AC3 streams.
  • foo_asap ~ Decodes Atari 8-bit chiptunes in the following formats: SAP, CMC, CM3, CMR, CMS, DMC, DLT, MPT, MPD, RMT, TMC, TM8, TM2, FC. Also plays files in all foobar2000-supported formats from ATR disk images.
  • foo_gep ~ Decodes several game console music formats: AY, GBS, GYM, HES, KSS, NSF, SAP, SGC, SPC, and VGM.
  • foo_input_adplug ~ Decodes all Adlib FM chip formats supported by the AdPlug library.
  • foo_input_amr ~ Plays Adaptive Multi-Rate audio (AMR or AMR-NB).
  • foo_input_avs ~ Decodes AviSynth scripts (.AVS), audio only. Requires AviSynth 2.5 or newer.
  • foo_input_dsdiff ~ Adds decoding support for DSDIFF files (.DFF).
  • foo_input_dts ~ Decodes DTS Coherent Acoustics files (.DTS) and DTS WAV files (.DTSWAV). Also includes a packet decoder for Matroska files containing DTS streams, and a decode post-processor which supports decoding DTS streams from 44100Hz or 48KHz 16-bit lossless PCM streams.
  • foo_input_dvda ~ Decoder is capable of playing back DVD-Audio discs, ISO images, AOB, MLP and Dolby TrueHD files in full resolution. Dedicated plugin for DTS-HD playback.
  • foo_input_gsf ~ Decodes .GSF/.MINIGSF files.
  • foo_input_ht ~ Decodes Sega Dreamcast Sound Format (.DSF/.MINIDSF) files and Sega Saturn Sound Format (.SSF/.MINISSF) files.
  • foo_input_hvl ~ Decodes Hively Tracker files (.HVL) as well as Abyss’ Highest eXperience files (.ahx)
  • foo_input_kdm ~ Decodes Ken Silverman’s Digital Music format files. (.kdm)
  • foo_input_monkey ~ Decodes Monkey’s Audio files (.APE) as well as APE Link files (.APL).
  • foo_input_ncsf ~ Decodes Nitro Composer Sound Format files (.NCSF/.MININCSF).
  • foo_input_org ~ Decodes Organya (.ORG) files.
  • foo_input_qsf ~ Decodes Capcom QSound Sound Format files (.QSF/.MINIQSF).
  • foo_input_shorten ~ Adds support for decoding Shorten files and tagging them through external APEv2 tags.
  • foo_input_sacd ~ Decoder is capable of playing Super Audio CD ISO images, DSDIFF, DSF and DSD WavPack files. Direct DSD playback for compatible devices.
  • foo_input_spotify ~ Spotify support for foobar2000. Requires a Spotify premium account.
  • foo_input_syntrax ~ Supports playback of the Syntrax or Jaytrax module format. (.JXS)
  • foo_input_tak ~ Alternative TAK decoder component. Bundles TAK 2.3.1 beta 1 decoder library.
  • foo_input_tfmx ~ Decodes TFMX files (MDAT., TFMX., .MDAT, .TFM, .TFMX, .TFX).
  • foo_input_tta ~ Decoder for the TTA Lossless Audio Codec. Decodes .tta files.
  • foo_input_usf ~ This is a decoder which adds support for playing (Ultra) Nintendo 64 Sound format (.USF/.MINIUSF) files.
  • foo_input_v2m ~ Farbrausch V2 module (V2M) decoder
  • foo_input_vgmstream ~ Decodes dozens of streamed ADPCM or other compressed format files extracted from various console and PC games.
  • foo_input_vio2sf ~ Decodes Nintendo DS Sound Format files (.2SF/.MINI2SF).
  • foo_input_zxtune ~ Decodes ZX Spectrum, Amiga, PC, Atari, Acorn chip / digital / fm tunes.
  • foo_luner2 ~ Decodes Lunar:  Eternal Blue disc for Sega CD.
  • foo_midi ~ Decodes General MIDI files (.MID, .KAR) and RIFF MIDI files (.RMI) as well as several proprietary MIDI formats (.MIDS, .MDS, .HMI, .HMP, .MUS, .XMI, .LDS).
  • foo_openmpt54 ~ This component aims to replace the DUMB module decoder, or foo_dumb, as it is much faster, and also in some ways more accurate than DUMB. It also supports more features internally, such as MO3 decoding, and unpacking xpk, ppm, and mmcmp formats.  It also supports .MPTM/.MPTMZ, .MO3, .UMX, .MOD/.MDZ/.MDR/.M15, .S3M/.S3Z, .XM/.XMZ, .IT/.ITZ, .STM, .PT36, .NST, .M15, .STK, .ST26, .ICE, .WOW, .ULT, .669, .MTM, .MED, .FAR, .MDL, .AMS, .DSM, .AMF, .OKT, .DMF, .PTM, .PSM, .MT2, .DBM, .DIGI, .IMF (Imago Orpheus), .J2B, .PLM, .SFX, .SFX2, .MMS, .STP, .C67, .GDM, and .DTM.
  • foo_pd_aac ~ This component replaces the stock input component’s AAC decoder with the one from FDK-AAC v2.0.1, to support AAC formats not supported by FFmpeg, such as xHE-AAC / USAC.
  • foo_psf ~ Decodes Sony Playstation Sound Format files (.PSF/.MINIPSF) as well as Playstation 2 Sound Format files (.PSF2/.MINIPSF2).
  • foo_sid ~ Decodes Commodore 64 SID sound files (.SID, .MUS). Based on resid-fp.
  • foo_snesapu ~ An alternative decoder for Super Nintendo SPC Sound Format files (.SPC).
  • foo_youtube ~ Play Youtube videos and playlists directly from their URLs.
Additional Input Resources:

foo_hdcd ~ This post processing service component will decode HDCD data in any 16-bit PCM stream passed through it by supporting inputs, such as CDDA, WAV, FLAC, and WavPack.

Command-Line Decoder Wrapper ~ This component allows foobar2000 to play or convert any audio format with a standalone command-line decoder available, including various exotic formats that do not have native foobar2000 decoder components. (foo_input_exe)

FFmpeg Decoder Wrapper ~ This component allows foobar2000 to read arbitrary file formats via user-supplied ffmpeg.exe and ffprobe.exe. (foo_input_ffmpeg)

foo_dyndec ~ Exposes the decoded sample rate, number of channels and bit depth to components that can only use static information natively.

foo_input_dummy ~ a pseudo input

How to install a foobar component.

foo_youtube ~ Foobar2000 & Youtube

Posted by tom2tec on

Watch music videos and video playlists using Foobar2000

  • This component adds the possibility of playing Youtube, Vimeo and Dailymotion clips directly via their URL.
  • In addition to single clip URLs it supports clip feeds (i.e. playlists, channels etc.) from Youtube and Dailymotion.
  • Single clips and feeds can be added using File menu commands Add location and Add multiple URL(s).
  • Component has several UI elements, both DUI and CUI are supported. There are element for searching on Youtube within the program, for video playback and elements for various technical info about clips and component workflow. All elements are listed under Youtube Source group in UI configuration windows.
  • In addition to UI elements it has several popup windows with similar functionality.
  • For Lyric Show Panel 3 it provides an additional lyric source.
  • Clip thumbnails are exposed as album art to the program.
  • Single clip can be turned into album with multiple tracks.

fy.3dyd.com
www.foobar2000.org/components/view/foo_youtube

Install component then install these dependencies:

Installing madVR:

  1. Download madVR zip archive
  2. Extract contents to a new folder
  3. Move folder to “C:\Program Files” (you need to be an admin)
  4. Right click install.bat and select “Run as administrator”

If it works it will say “Install Successful”

Additional Resources:
wiki.mikejung.biz/MadVR#LAV_Filters

foo_random_pools ~ Random Autoplaylists

Posted by tom2tec on

Another type of Foobar2000’s playlists are randomly generated autoplaylists where songs, or groups of songs, are selected randomly from a pool of the same. By predefining a subset of a media library, “pools” of refined selections can be created and then drawn from.

foo_random_pools is a foobar2000 component for creating random playlist entries selected and grouped by various pool definitions.

www.foobar2000.org/components/view/foo_random_pools

Let’s say you want a playlist of random blues albums from your library.

  • First you’ll need to install the foo_random_pools component.
  • After you’ve installed foo_random_pools, you’ll need to set up a pool in the File > Preferences > Tools > Random pools sub-menu.File - Preferences - Tools - Random pools
  • You’ll need to select the “Add …” button which brings up the Random pool criteria form.Preferences - Random Pools - Random Pool - blankFor example to make a pool of blues albums use the following criteria:
    Name: Album – All Blues
    Group: %album artist% – %date% – %album%
    Determine probability for picking groups …: Unchecked
    Number of groups to add: 1
    Filter: (NOT %album artist% IS “Various Artists”) AND (%genre% HAS Blues)
    Filter with the content of the target playlist: Unchecked
    Number of tracks to add: 0
    Number of minutes to add: 0
    Number of MBs to add: 0
    Limit after sorting: Unchecked
    Sort: %path%
    Sort / limit each group: Checked
    Priority: 10Preferences - Random Pools - Edit
  • Now you have to link pools to a playlist by specifying a name in the Autoadd section’s Playlist patterns field of the Random pools preferences menu.File - Preferences - Tools - Random pools - Autoadd - Random Blues Album
  • Create a new playlist, File>New Playlist Ctrl+N, and name it “Random Blues Album” and then select and display it.
  • To add a random blues album to the playlist, select File > Random pools > Album – All Blues. Each time it’s selected, another random blues album will be added to the playlist.

foo_dsp_delta ~ Foobar2000 Noise Sharpening

Posted by tom2tec on

A digital signal processor that makes dull songs sound sharper, as in brighter.

Strictly speaking, nobody really needs this DSP. It’s just that some people like the effect. If you want to compensate deficiencies in your playback equipment or listening environment, the convolver or the equalizer are more appropriate tools. ~ HA post

There are four interrelated DSPs enclosed, only use the last one, Noise Sharpening.

Noise sharpening can/should be used alone. ~ HA post

http://foosion.foobar2000.org/components/?id=delta

foo_dsp_xover ~ Foobar2000 Digital Crossover

Posted by tom2tec on

foo_dsp_xover is a software digital crossover implementation that I have been working on for a while in my spare time as a hobby. It is a Foobar2000 audio player plugin that implements this digital crossover to achieve active multi-amplification.

This software needs to run on a WinXP PC equipped with a multi-channel sound card (e.g. 5.1 or 7.1 surround sound card) feeding the various voices of a multi-amplifier and loudspeaker active configuration set-up.

foo_dsp_xover

xover.sourceforge.net
sourceforge.net/projects/xover

Foobar2000 ~ Output Components

Posted by tom2tec on

Specialized output components allow Foobar to interface directly with hardware or software devices.

Official output components:

Alternative output components:

ASIOhrp Utility:

hydrogenaud.io/index.php?topic=97127.msg978428#msg978428

Resources:
wiki.hydrogenaud.io/index.php?title=Foobar2000:Components/WASAPI_output_support_(foo_out_wasapi)
wiki.hydrogenaud.io/index.php?title=Foobar2000%3aPreferences:Output#Output_Device
Foobar2000 ~ How To Install A Component
en.wikipedia.org/wiki/Audio_Stream_Input/Output (ASIO)
en.wikipedia.org/wiki/Universal_Plug_and_Play (UPNP)
en.wikipedia.org/wiki/Windows_legacy_audio_components#Kernel_Streaming

Foobar2000 ~ Biography Display Script

Posted by tom2tec on

This is an updated biography script that works in the 32bit Spider Monkey Javascript panel. This won’t work in 64bit Foobar2000 installations.

biography_new_1

Spider Monkey Panel ~ github.com/TheQwertiest/foo_spider_monkey_panel

Biography Script: The most recent version of the script is on, or near, the last page of this discussion. ~ hydrogenaud.io/index.php/topic,112913.0.html

  1. Download and install foo_spider_monkey_panel
  2. Download and unzip the newest version of the Biography script
  3. In Foobar2000 select “View > Layout > Enable Layout Editing Mode“
  4. Add a new panel or tab to your Foobar interface
  5. Right click in the new area and select “Add New UI Element…“
  6. Select “Spider Monkey Panel” in the Utility section
  7. You should now see a blank Spider Monkey panel and the message “Click here to open editor.“
  8. Click on the panel to open the editor and click the “Files” button and select “Import” and navigate to the biography script folder, select the script file “biography.x.x.x.js” and click “Open“
  9. Click “Apply” and click “Ok“
  10. Rename the Tab
  11. Disable “Layout editing mode” in the “View” menu

Forum Discussion:
hydrogenaud.io/index.php/topic,112914.msg929674
